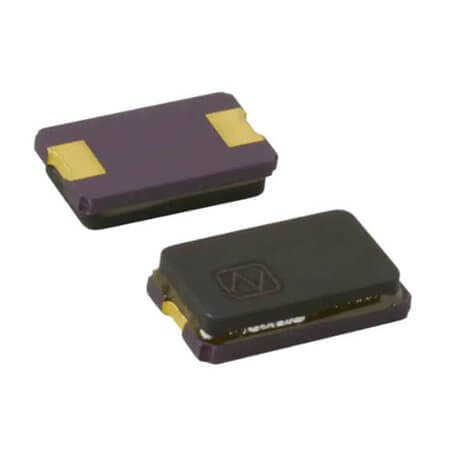

NX8045GB-8.000M-STD-CSJ- CRYSTAL 8.0000 MHZ 8PF 50PPM

NX8045GB-8.000M-STD-CSJ- CRYSTAL 8.0000 MHZ 8PF 50PPM Description

NX8045GB-8.000M-STD-CSJ- CRYSTAL 8.0000 MHZ 8PF 50PPM NX8045GB-8.000M-STD-CSJ- is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±150PPM.Features equivalent series resistance (ESR) of 220 Ohms. Compact dimensions: length 8.00mm, width 4.50mm, and height 1.80mm. Supports a temperature range of -40°C~+150°C for reliable performance. Manufactured by NDK with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

NX8045GB-8.000M-STD-CSJ- CRYSTAL 8.0000 MHZ 8PF 50PPM Technical Specifications

• Manufacturer: NDK
• MountingType: SMT
• Series: NX8045GB
• Package/Case: 2-SMD
• Frequency: 8MHz
• Capacitance: 8pF
• FrequencyTolerance: ±50PPM
• FrequencyStability: ±150PPM
• EquivalentSeriesResistance(ESR): 220 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 8.00mm
• Width: 4.50mm
• Height: 1.80mm
• OperatingTemperature: -40°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
