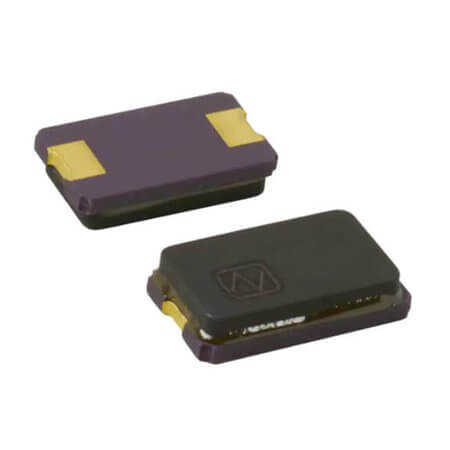

NX8045GB-25.000000MHZ CRYSTAL 25MHZ 8PF SMD

NX8045GB-25.000000MHZ CRYSTAL 25MHZ 8PF SMD Description

NX8045GB-25.000000MHZ CRYSTAL 25MHZ 8PF SMD NX8045GB-25.000000MHZ is a high-performance crystal component that operates at a frequency of 25MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 50 Ohms. Compact dimensions: length 8.00mm, width 4.50mm, and height 1.80mm. Supports a temperature range of -10°C~+70°C for reliable performance. Manufactured by NDK with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

NX8045GB-25.000000MHZ CRYSTAL 25MHZ 8PF SMD Technical Specifications

• Manufacturer: NDK
• MountingType: SMT
• Series: NX8045GB
• Package/Case: 2-SMD
• Frequency: 25MHz
• Capacitance: 8pF
• FrequencyTolerance: ±50PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 50 Ohms
• Applications:
• Diameter:
• Length: 8.00mm
• Width: 4.50mm
• Height: 1.80mm
• OperatingTemperature: -10°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
