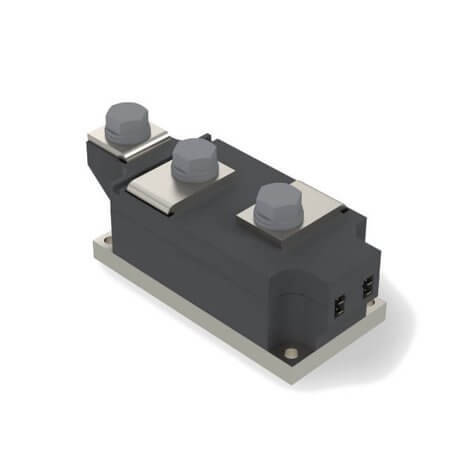

MCD501-16IO2 THYRISTOR DIODE MOD.DUAL 503A 1600V W74 CHASSIS

MCD501-16IO2 THYRISTOR DIODE MOD.DUAL 503A 1600V W74 CHASSIS Description

MCD501-16IO2 THYRISTOR DIODE MOD.DUAL 503A 1600V W74 CHASSIS The MCD501-16IO2, manufactured by IXYS, is a high-performance module designed for thyristor diode mod.dual 503a 1600v w74 chassis. It offers exceptional reliability and efficiency in high-power applications. The module features a forward voltage drop of 1.5V, ensuring minimal power loss. It can handle a power dissipation of N/A, making it suitable for demanding environments. The reverse recovery time is 19us, and the turn-off time is 200us, allowing for efficient switching. Configured as a dual module, it provides versatility for various applications. The device operates within a temperature range of -40°C~+125°C, ensuring robust performance in diverse conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in box format, it ensures secure handling and storage. With its advanced features and durable design, the MCD501-16IO2 is an excellent choice for professionals seeking reliable module diode and thyristor solutions.

MCD501-16IO2 THYRISTOR DIODE MOD.DUAL 503A 1600V W74 CHASSIS Technical Specifications

• Manufacturer: IXYS
• Series: Thyristor Phase Control
• MountingType: Chassis
• Package/Case: W74
• CurrentOnState(ITav): 503A (2x503A)
• RMSOnState(ITrms): 1.195kA (2x1.195kA)
• CurrentTemperature(IC): 85°C
• CurrentHold(IH): 300mA
• Voltage(VRRM): 1.6kV
• GateTrigger(Vgt): 2.5V
• ForwardDrop(VT): 1.5V
• PowerDissipation:
• Trr: 19us
• Tq: 200us
• Configuration: Dual
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
