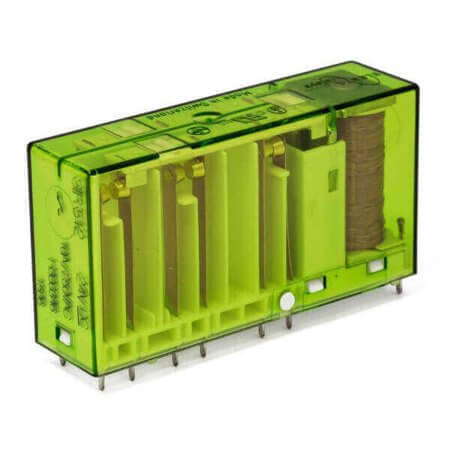

SIR332 24VDC SEN RELAY FORCEGUIDED 10A 24VDC (3 Form A/3 Form B)

SIR332 24VDC SEN RELAY FORCEGUIDED 10A 24VDC (3 Form A/3 Form B) Description

SIR332 24VDC SEN RELAY FORCEGUIDED 10A 24VDC (3 Form A/3 Form B) SIR332 24VDC SEN is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/DC and coil resistance of 1.15K Ohms. Features a coil power of 500mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 58.90mm, width 16.00mm, and height 30.70mm.Manufactured by ELESTA and compliant with ROHS standards. Packaged as BOX for convenience.

SIR332 24VDC SEN RELAY FORCEGUIDED 10A 24VDC (3 Form A/3 Form B) Technical Specifications

• Manufacturer: ELESTA
• RelayType: Relay Forcibly Guided
• Series: SIR6
• MountingType: THT
• ContactForm: 6PST-NO/NC (3 Form A/3 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 20.80mA
• ContactVoltage: 250VAC/DC
• CoilResistance: 1.15K Ohms
• CoilPower: 500mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 14 Pin
• Length: 58.90mm
• Width: 16.00mm
• Height: 30.70mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
