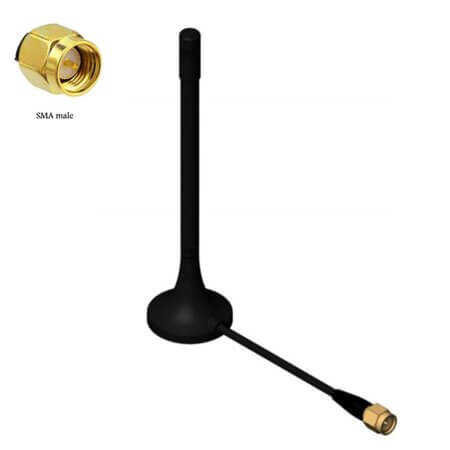

JCW069 ANTENNA LTE 2483.5MHz 2DBI SMA MALE RG174

JCW069 ANTENNA LTE 2483.5MHz 2DBI SMA MALE RG174 Description

JCW069 ANTENNA LTE 2483.5MHz 2DBI SMA MALE RG174 The product JCW069 (ANTENNA LTE 2483.5MHz 2DBI SMA MALE RG174) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a WHIP/STRAIGHT type design with an impedance of 50 Ohm, it supports a wide frequency range of 2400MHz to 2483.5MHz. The antenna offers a gain of 2dBi and a VSWR of 2.0, ensuring efficient performance. Suitable for WIFI/WLAN, it has a compact height of 121mm and operates within a temperature range of -40°C~+85°C. Compliant with ROHS standards, it is packaged in BOX format, making it ideal for modern communication systems.

JCW069 ANTENNA LTE 2483.5MHz 2DBI SMA MALE RG174 Technical Specifications

• Manufacturer: JINCHANG
• Gender: SMA MALE
• AntennaType: WHIP/STRAIGHT
• Impedance: 50 Ohm
• FrequencyRange: 2400MHz to 2483.5MHz
• Gain: 2dBi
• VSWR: 2.0
• Applications: WIFI/WLAN
• Height: 121mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
