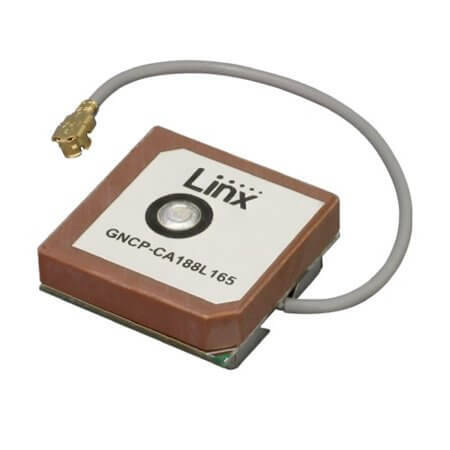

ANT-GNCP-CA188L165 RF ANT GNSS PATCH L1 25X25 PIN

ANT-GNCP-CA188L165 RF ANT GNSS PATCH L1 25X25 PIN Description

ANT-GNCP-CA188L165 RF ANT GNSS PATCH L1 25X25 PIN The product ANT-GNCP-CA188L165 (RF ANT GNSS PATCH L1 25X25 PIN) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CHIP type design with an impedance of 50 Ohm, it supports a wide frequency range of 1.559GHz to 1.563GHz, 1.567GHz to 1.5836GHz, 1.5876GHz to 1.5917GHz, 1.593GHz to 1.6086GHz. The antenna offers a gain of 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi and a VSWR of <= 1.1, ensuring efficient performance. Suitable for Beidou, Galileo, GLONASS, GNSS, GPS, it has a compact height of 18 x 18 x 7.1 mm and operates within a temperature range of -40°C~+85°C. Compliant with N/A standards, it is packaged in TRAY format, making it ideal for modern communication systems.

ANT-GNCP-CA188L165 RF ANT GNSS PATCH L1 25X25 PIN Technical Specifications

• Manufacturer: LINX
• Gender: i-PEX FEMALE
• AntennaType: CHIP
• Impedance: 50 Ohm
• FrequencyRange: 1.559GHz to 1.563GHz, 1.567GHz to 1.5836GHz, 1.5876GHz to 1.5917GHz, 1.593GHz to 1.6086GHz
• Gain: 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi
• VSWR: <= 1.1
• Applications: Beidou, Galileo, GLONASS, GNSS, GPS
• Height: 18 x 18 x 7.1 mm
• OperatingTemperature: -40°C~+85°C
• Rohs:
• Packaging: TRAY

---

You can click for product datasheet.
