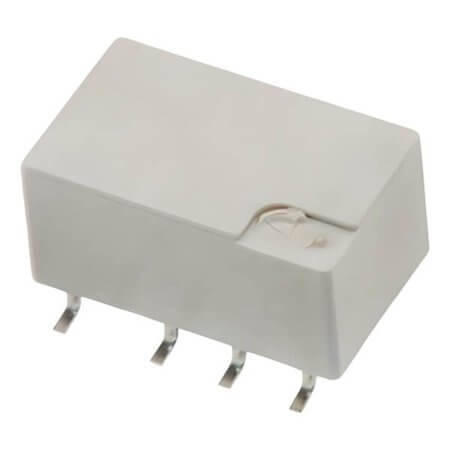

IM07GR RELAY 2A 24VDC 2 form C TELECOM SMD

IM07GR RELAY 2A 24VDC 2 form C TELECOM SMD Description

IM07GR RELAY 2A 24VDC 2 form C TELECOM SMD IM07GR is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 10.00mm, width 6.00mm, and height 5.65mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TAPE&REEL for convenience.

IM07GR RELAY 2A 24VDC 2 form C TELECOM SMD Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: AXICOM IM
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 10.00mm
• Width: 6.00mm
• Height: 5.65mm
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
