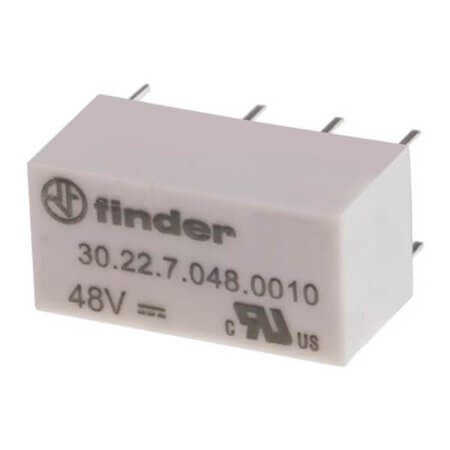

30.22.7.048.0010 RELAY TELECOM 2A 48VDC DPDT (2FormC)

30.22.7.048.0010 RELAY TELECOM 2A 48VDC DPDT (2FormC) Description

30.22.7.048.0010 RELAY TELECOM 2A 48VDC DPDT (2FormC) 30.22.7.048.0010 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC - Max and coil resistance of 10K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.30mm, width 10.10mm, and height 11.40mm.Manufactured by FINDER and compliant with ROHS standards. Packaged as BULK for convenience.

30.22.7.048.0010 RELAY TELECOM 2A 48VDC DPDT (2FormC) Technical Specifications

• Manufacturer: FINDER
• RelayType: Relay General
• Series: 30
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max): 3A
• CoilVoltage: 48VDC
• CoilCurrent: 4.80mA
• ContactVoltage: 250VAC - Max
• CoilResistance: 10K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 20.30mm
• Width: 10.10mm
• Height: 11.40mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
