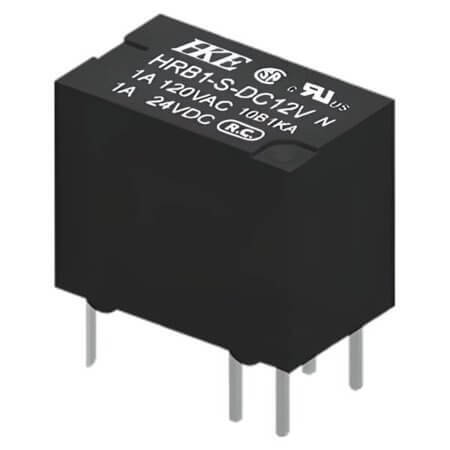

HRB1-S-DC9V RELAY POWER 1A 9VDC MINI SPOT

HRB1-S-DC9V RELAY POWER 1A 9VDC MINI SPOT Description

HRB1-S-DC9V RELAY POWER 1A 9VDC MINI SPOT HRB1-S-DC9V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 120VAC/30VDC and coil resistance of 540 Ohms. Features a coil power of 150mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 12.30mm, width 7.30mm, and height 10.00mm.Manufactured by HKE and compliant with ROHS standards. Packaged as TUBE for convenience.

HRB1-S-DC9V RELAY POWER 1A 9VDC MINI SPOT Technical Specifications

• Manufacturer: HKE
• RelayType: Relay Power
• Series: HRB1
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 2A
• CoilVoltage: 9VDC
• CoilCurrent:
• ContactVoltage: 120VAC/30VDC
• CoilResistance: 540 Ohms
• CoilPower: 150mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 12.30mm
• Width: 7.30mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
