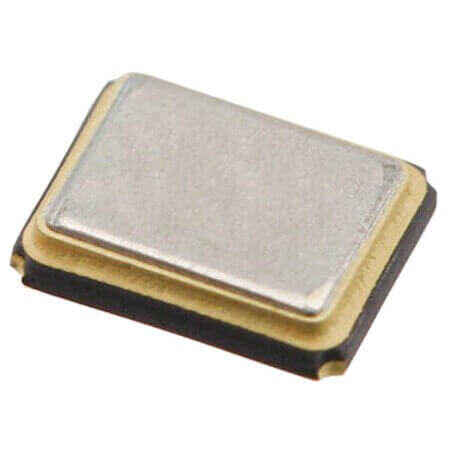

ECS-81.92-12-30Q-EN-TR CRYSTAL 8.1920MHZ 12PF SMD AEC-Q200

ECS-81.92-12-30Q-EN-TR CRYSTAL 8.1920MHZ 12PF SMD AEC-Q200 Description

ECS-81.92-12-30Q-EN-TR CRYSTAL 8.1920MHZ 12PF SMD AEC-Q200 ECS-81.92-12-30Q-EN-TR is a high-performance crystal component that operates at a frequency of 8.192MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 3.20mm, width 5.00mm, and height 1.10mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ECS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ECS-81.92-12-30Q-EN-TR CRYSTAL 8.1920MHZ 12PF SMD AEC-Q200 Technical Specifications

• Manufacturer: ECS
• MountingType: SMT
• Series: ECX-53Q
• Package/Case: 2-SMD
• Frequency: 8.192MHz
• Capacitance: 12pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 3.20mm
• Width: 5.00mm
• Height: 1.10mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
