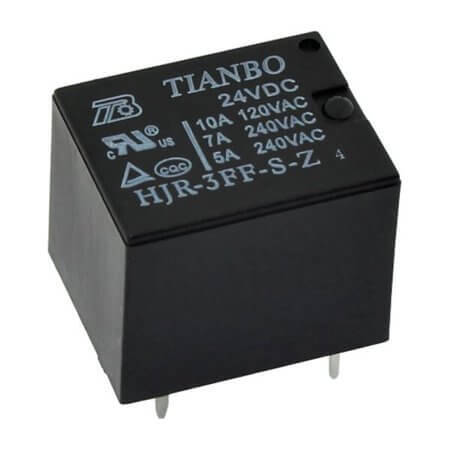

HJR-3FF-S-Z-4/24VDC RELAY POWER 7A 24VDC PCB TYPE (JS1) 5PIN TIANBO

HJR-3FF-S-Z-4/24VDC RELAY POWER 7A 24VDC PCB TYPE (JS1) 5PIN TIANBO Description

HJR-3FF-S-Z-4/24VDC RELAY POWER 7A 24VDC PCB TYPE (JS1) 5PIN TIANBO HJR-3FF-S-Z-4/24VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC and coil resistance of 1.60K Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 19.00mm, width 15.40mm, and height 15.50mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

HJR-3FF-S-Z-4/24VDC RELAY POWER 7A 24VDC PCB TYPE (JS1) 5PIN TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: HJR-3FF
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 7A
• ContactCurrent(Max): 10A
• CoilVoltage: 24VDC
• CoilCurrent: 15mA
• ContactVoltage: 240VAC
• CoilResistance: 1.60K Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 19.00mm
• Width: 15.40mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
