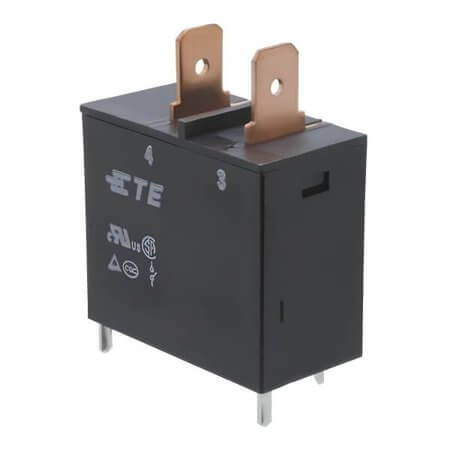

PCF-124D2M,000 RELAY 25A 24VDC SPST-NO THT

PCF-124D2M,000 RELAY 25A 24VDC SPST-NO THT Description

PCF-124D2M,000 RELAY 25A 24VDC SPST-NO THT PCF-124D2M,000 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/24VDC - Max and coil resistance of 640 Ohms. Features a coil power of 900mW and operates within a temperature range of -30°C~+55°C.Compact design with dimensions: length 30.40mm, width 16.00mm, and height 26.50mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

PCF-124D2M,000 RELAY 25A 24VDC SPST-NO THT Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PCF
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 25A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 37.50mA
• ContactVoltage: 277VAC/24VDC - Max
• CoilResistance: 640 Ohms
• CoilPower: 900mW
• OperatingTemperature: -30°C~+55°C
• NumberofPins: 4 Pin
• Length: 30.40mm
• Width: 16.00mm
• Height: 26.50mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
