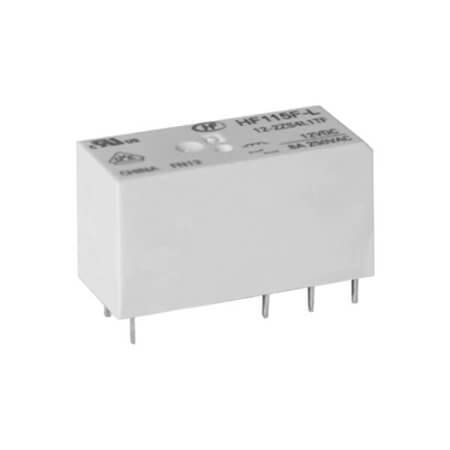

HF115F-L/12-2ZS4L1TF RELAY POWER 10A 12VDC 2FORMC

HF115F-L/12-2ZS4L1TF RELAY POWER 10A 12VDC 2FORMC Description

HF115F-L/12-2ZS4L1TF RELAY POWER 10A 12VDC 2FORMC HF115F-L/12-2ZS4L1TF is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 440VAC/300VDC - Max and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TUBE for convenience.

HF115F-L/12-2ZS4L1TF RELAY POWER 10A 12VDC 2FORMC Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power Latching
• Series: HF115F-L2
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Latching, Single Coil
• ContactCurrent(Nom): 8A
• ContactCurrent(Max): 10A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 440VAC/300VDC - Max
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
