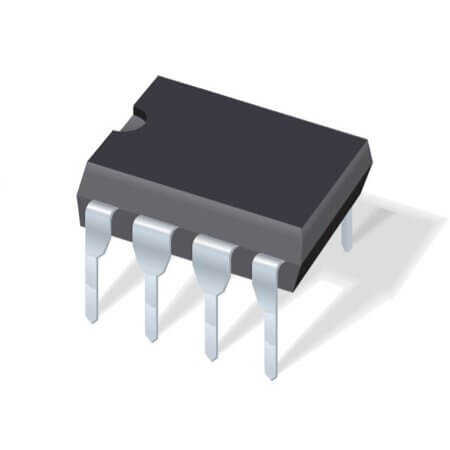

HCPL-4506-000E IC-4506 OPTO DRIVER DIP8 AVAGO

HCPL-4506-000E IC-4506 OPTO DRIVER DIP8 AVAGO Description

HCPL-4506-000E IC-4506 OPTO DRIVER DIP8 AVAGO The product HCPL-4506-000E (IC-4506 OPTO DRIVER DIP8 AVAGO) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 550ns, 650ns, an input type of DC, and an output type of Open Collector, Schottky Clamped. The optocoupler supports an output current of 15mA and an isolation voltage of 3750Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.5V, a supply voltage range of 4.5V to 30V, and an operating temperature range of -40°C~+100°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

HCPL-4506-000E IC-4506 OPTO DRIVER DIP8 AVAGO Technical Specifications

• Manufacturer: AVAGO-BROADCOM
• Features: Intelligent Power Module and Gate Drive Interface Optocouplers
• MountingType: THT
• Package/Case: DIP8
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 550ns, 650ns
• InputType: DC
• OutputType: Open Collector, Schottky Clamped
• OutputCurrent: 15mA
• IsolationVoltage: 3750Vrms
• InputForwardVoltage: 1.5V
• SupplyVoltage: 4.5V to 30V
• OperatingTemperature: -40°C~+100°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
