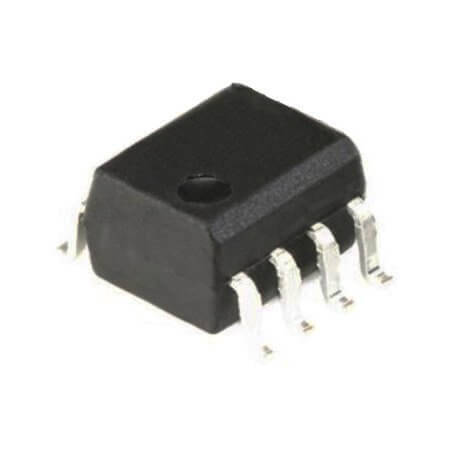

HCPL-0611-500E OPTOISO 3.75KV TRI-STATE 8SO

HCPL-0611-500E OPTOISO 3.75KV TRI-STATE 8SO Description

HCPL-0611-500E OPTOISO 3.75KV TRI-STATE 8SO The product HCPL-0611-500E (OPTOISO 3.75KV TRI-STATE 8SO) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 100ns, 100ns, an input type of DC, and an output type of Open Collector, Schottky Clamped. The optocoupler supports an output current of 50mA and an isolation voltage of 3750Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.5V, a supply voltage range of 4.5V to 5.5V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TAPE&REEL packaging, making it a reliable choice for modern electronic systems.

HCPL-0611-500E OPTOISO 3.75KV TRI-STATE 8SO Technical Specifications

• Manufacturer: AVAGO-BROADCOM
• Features: High CMR High Speed TTL Compatible Optocouplers
• MountingType: SMT
• Package/Case: SO8
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 100ns, 100ns
• InputType: DC
• OutputType: Open Collector, Schottky Clamped
• OutputCurrent: 50mA
• IsolationVoltage: 3750Vrms
• InputForwardVoltage: 1.5V
• SupplyVoltage: 4.5V to 5.5V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
