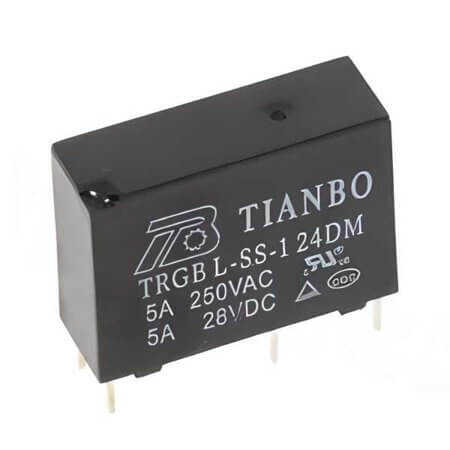

TRGB-L-SS-124DM RELAY 5A 24V 1A TIANBO

TRGB-L-SS-124DM RELAY 5A 24V 1A TIANBO Description

TRGB-L-SS-124DM RELAY 5A 24V 1A TIANBO TRGB-L-SS-124DM is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 20.50mm, width 7.20mm, and height 15.60mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

TRGB-L-SS-124DM RELAY 5A 24V 1A TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay General
• Series: TRGB
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 4 Pin
• Length: 20.50mm
• Width: 7.20mm
• Height: 15.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
