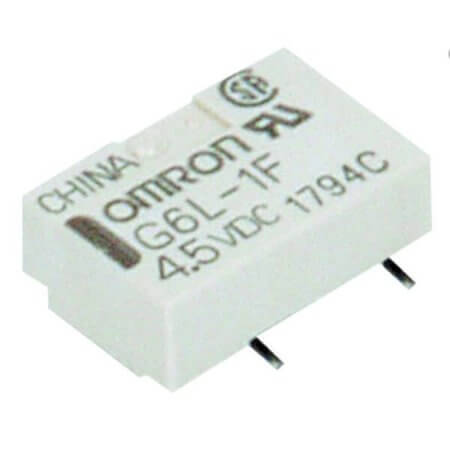

G6L-1F DC5 RELAY 1A 5V SPST TELECOM OMRON

G6L-1F DC5 RELAY 1A 5V SPST TELECOM OMRON Description

G6L-1F DC5 RELAY 1A 5V SPST TELECOM OMRON G6L-1F DC5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/24VDC and coil resistance of 139 Ohms. Features a coil power of 180mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 10.60mm, width 7.00mm, and height 4.20mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6L-1F DC5 RELAY 1A 5V SPST TELECOM OMRON Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Telecom
• Series: G6L
• MountingType: SMT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 36mA
• ContactVoltage: 125VAC/24VDC
• CoilResistance: 139 Ohms
• CoilPower: 180mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 10.60mm
• Width: 7.00mm
• Height: 4.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
