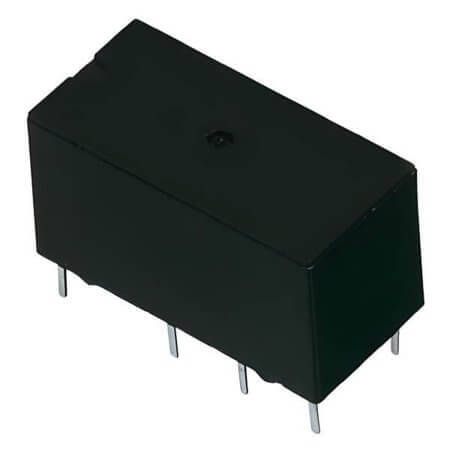

G5V-2-DC12 RELAY 2A 12VDC 2PNC TELECOM TYPE (JRC) OMRON

G5V-2-DC12 RELAY 2A 12VDC 2PNC TELECOM TYPE (JRC) OMRON Description

G5V-2-DC12 RELAY 2A 12VDC 2PNC TELECOM TYPE (JRC) OMRON G5V-2-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/125VDC - Max and coil resistance of 288 Ohms. Features a coil power of 500mW and operates within a temperature range of -25°C~+65°C.Compact design with dimensions: length 20.30mm, width 9.90mm, and height 11.40mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G5V-2-DC12 RELAY 2A 12VDC 2PNC TELECOM TYPE (JRC) OMRON Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay General
• Series: G5V
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 41.70mA
• ContactVoltage: 125VAC/125VDC - Max
• CoilResistance: 288 Ohms
• CoilPower: 500mW
• OperatingTemperature: -25°C~+65°C
• NumberofPins: 8 Pin
• Length: 20.30mm
• Width: 9.90mm
• Height: 11.40mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
