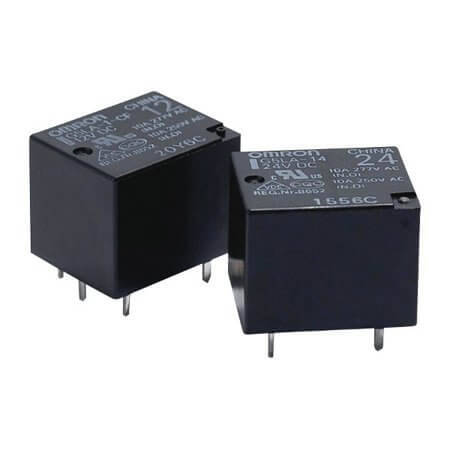

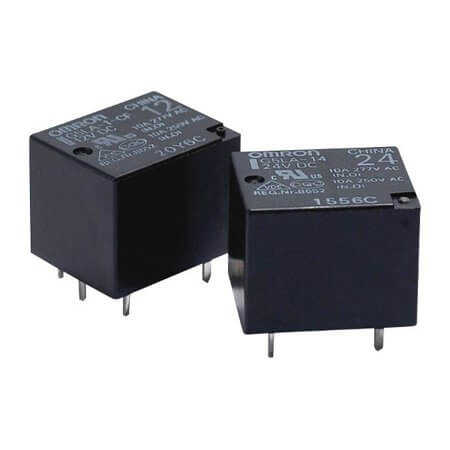

G5LA-1 DC12 RELAY POWER 5A 12VDC SPDT (1 Form C) 5PIN

G5LA-1 DC12 RELAY POWER 5A 12VDC SPDT (1 Form C) 5PIN Description

G5LA-1 DC12 RELAY POWER 5A 12VDC SPDT (1 Form C) 5PIN G5LA-1 DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/24VDC and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 19.80mm, width 15.80mm, and height 15.80mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G5LA-1 DC12 RELAY POWER 5A 12VDC SPDT (1 Form C) 5PIN Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G5LA
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 250VAC/24VDC
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 19.80mm
• Width: 15.80mm
• Height: 15.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
