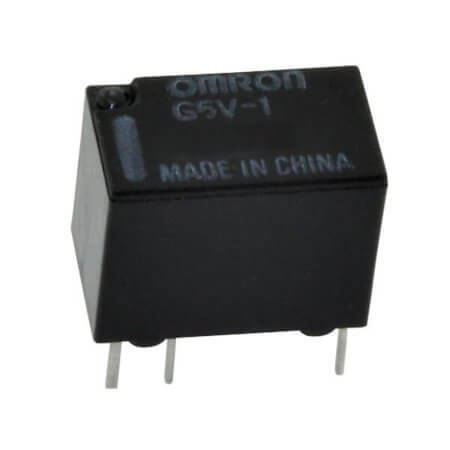

G5V-1-DC5 RELAY POWER 1A 5V SPDT OMRON

G5V-1-DC5 RELAY POWER 1A 5V SPDT OMRON Description

G5V-1-DC5 RELAY POWER 1A 5V SPDT OMRON G5V-1-DC5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/60VDC - Max and coil resistance of 167 Ohms. Features a coil power of 150mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 12.50mm, width 7.50mm, and height 10.00mm.Manufactured by OMRON and compliant with nan standards. Packaged as TUBE for convenience.

G5V-1-DC5 RELAY POWER 1A 5V SPDT OMRON Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay General
• Series: G5V
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 30mA
• ContactVoltage: 125VAC/60VDC - Max
• CoilResistance: 167 Ohms
• CoilPower: 150mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 12.50mm
• Width: 7.50mm
• Height: 10.00mm
• Rohs:
• Packaging: TUBE

---

You can click for product datasheet.
