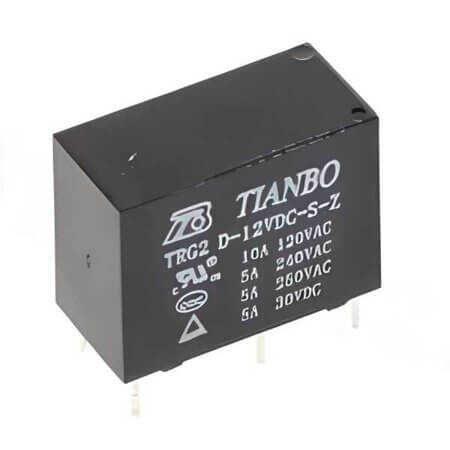

TRG2-D-12VDC-S-Z RELAY 10A 12V 5A TIANBO

TRG2-D-12VDC-S-Z RELAY 10A 12V 5A TIANBO Description

TRG2-D-12VDC-S-Z RELAY 10A 12V 5A TIANBO TRG2-D-12VDC-S-Z is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 320 Ohms. Features a coil power of 450mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 20.50mm, width 10.20mm, and height 15.50mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

TRG2-D-12VDC-S-Z RELAY 10A 12V 5A TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay General
• Series: TRG2
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 12VDC
• CoilCurrent: 37.50mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 320 Ohms
• CoilPower: 450mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 5 Pin
• Length: 20.50mm
• Width: 10.20mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
