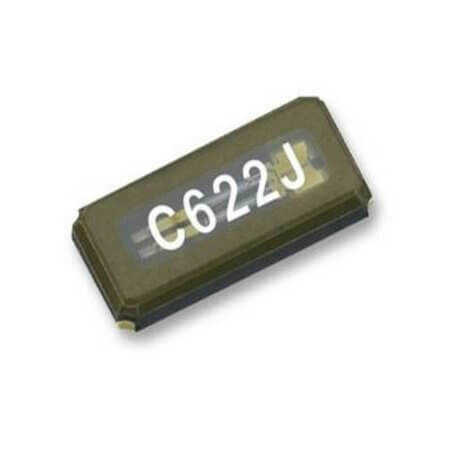

FC-135R 32.7680KA-AC3 CRYSTAL 32.768KHZ 9pF 20ppm SMD

FC-135R 32.7680KA-AC3 CRYSTAL 32.768KHZ 9pF 20ppm SMD Description

FC-135R 32.7680KA-AC3 CRYSTAL 32.768KHZ 9pF 20ppm SMD FC-135R 32.7680KA-AC3 is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of nan.Features equivalent series resistance (ESR) of 50K Ohms. Compact dimensions: length 3.20mm, width 1.50mm, and height 0.80mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by EPSON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

FC-135R 32.7680KA-AC3 CRYSTAL 32.768KHZ 9pF 20ppm SMD Technical Specifications

• Manufacturer: EPSON
• MountingType: SMT
• Series: FC-135R
• Package/Case: 2-SMD
• Frequency: 32.768KHz
• Capacitance: 9pF
• FrequencyTolerance: ±20PPM
• FrequencyStability:
• EquivalentSeriesResistance(ESR): 50K Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.50mm
• Height: 0.80mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
