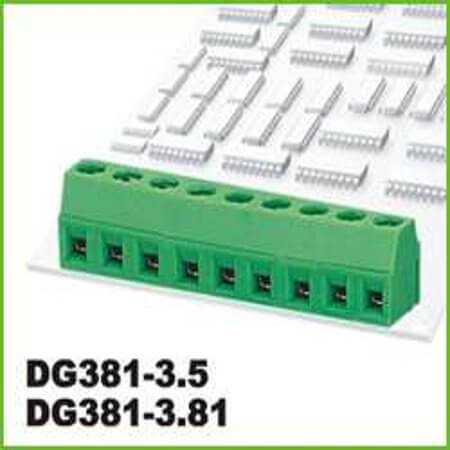

DG381-3.5-03P-14-00SH TERM.BLK.3.50MM 3P PCB TYPE GREEN GAOSONG

DG381-3.5-03P-14-00SH TERM.BLK.3.50MM 3P PCB TYPE GREEN GAOSONG Description

DG381-3.5-03P-14-00SH TERM.BLK.3.50MM 3P PCB TYPE GREEN GAOSONG DG381-3.5-03P-14-00SH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-16 AWG (1.0 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Phosphor Bronze+Tin Plated pins for durability. Manufactured by DEGSON/GAOSONG with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG381-3.5-03P-14-00SH TERM.BLK.3.50MM 3P PCB TYPE GREEN GAOSONG Technical Specifications

• Manufacturer: DEGSON/GAOSONG
• Series: DG381
• Gender: None
• WireTermination: Screw
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 3.50mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 8.60mm
• Current: 10.0A
• Voltage: 150V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-16 AWG
• WireGauge(mm²): 1.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Phosphor Bronze+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
