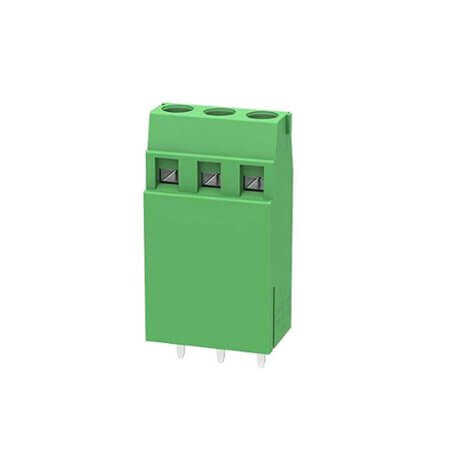

DG127HH-5.0-03P-14-00AH TERM.BLK.5.00MM 3P PCB TYPE GREEN

DG127HH-5.0-03P-14-00AH TERM.BLK.5.00MM 3P PCB TYPE GREEN Description

DG127HH-5.0-03P-14-00AH TERM.BLK.5.00MM 3P PCB TYPE GREEN DG127HH-5.0-03P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 26-14 AWG (1.5 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG127HH-5.0-03P-14-00AH TERM.BLK.5.00MM 3P PCB TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG127HH
• Gender: Male
• WireTermination: Screw
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 5.00mm
• MountingType: THT V/T
• WireEntry: 90°
• ProfileHeight: 28.00mm
• Current: 12.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 26-14 AWG
• WireGauge(mm²): 1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
