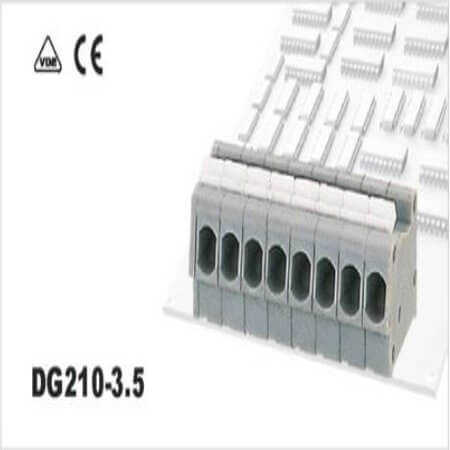

DG210-3.5-03P-11-00AH TERM.BLK.3.5MM 3P PCB TYPE GRAY

DG210-3.5-03P-11-00AH TERM.BLK.3.5MM 3P PCB TYPE GRAY Description

DG210-3.5-03P-11-00AH TERM.BLK.3.5MM 3P PCB TYPE GRAY DG210-3.5-03P-11-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-16 AWG (0.5-1.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG210-3.5-03P-11-00AH TERM.BLK.3.5MM 3P PCB TYPE GRAY Technical Specifications

• Manufacturer: DEGSON
• Series: DG210
• Gender: Male
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 3.50mm
• MountingType: THT V/T
• WireEntry: 90°
• ProfileHeight: N/A
• Current: 5.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-16 AWG
• WireGauge(mm²): 0.5-1.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
