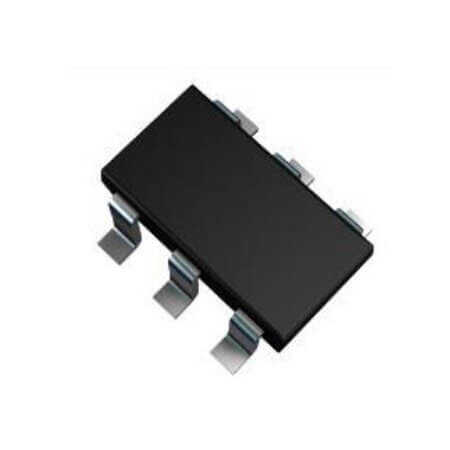

D5V0P4UR6SO-7 DIODE TVS 3.3VWM 6VC SOT26

D5V0P4UR6SO-7 DIODE TVS 3.3VWM 6VC SOT26 Description

The D5V0P4UR6SO-7 DIODE TVS 3.3VWM 6VC SOT26 The D5V0P4UR6SO-7 by DIODES (ZETEX) is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 5uA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 45A and a power peak pulse of 300mW, this diode is ideal for HDMI applications. Operating efficiently within a temperature range of -55°C~+85°C, the D5V0P4UR6SO-7 is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

D5V0P4UR6SO-7 DIODE TVS 3.3VWM 6VC SOT26 Technical Specifications

• Manufacturer: DIODES (ZETEX)
• TVS   DiodeType: Standard
• DiodeConfiguration: Quad
• MountingType: SMT
• Package   /Case: SOT26
• Direction: Uni-Direction
• Voltage   -   Reverse   Standoff(Typ): 3.3V
• ReverseCurrent: 5uA
• Peak   Pulse   Current   (Max)(Ippm): 45A
• Power   (PeakPulse): 300mW
• Applications: HDMI
• OperatingTemperature: -55°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL
