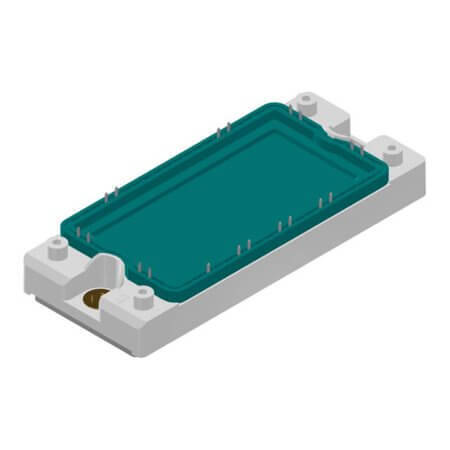

MCNA120UI2200P-PC THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK

MCNA120UI2200P-PC THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK Description

MCNA120UI2200P-PC THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK The MCNA120UI2200P-PC, manufactured by IXYS, is a high-performance module designed for thyristor diode mod.three ph 120a 2200v e2-pack. It offers exceptional reliability and efficiency in high-power applications. The module features a forward voltage drop of 1.33V, ensuring minimal power loss. It can handle a power dissipation of 190W, making it suitable for demanding environments. The reverse recovery time is 1.3us, and the turn-off time is 500us, allowing for efficient switching. Configured as a three ph module, it provides versatility for various applications. The device operates within a temperature range of -40°C~+125°C, ensuring robust performance in diverse conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in blister format, it ensures secure handling and storage. With its advanced features and durable design, the MCNA120UI2200P-PC is an excellent choice for professionals seeking reliable module diode and thyristor solutions.

MCNA120UI2200P-PC THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK Technical Specifications

• Manufacturer: IXYS
• Series: Half Controlled Single Phase Rectifier Bridge
• MountingType: Chassis
• Package/Case: E2-Pack
• CurrentOnState(ITav): 120A
• RMSOnState(ITrms):
• CurrentTemperature(IC): 80°C
• CurrentHold(IH): 100mA
• Voltage(VRRM): 2.2kV
• GateTrigger(Vgt): 1.4V
• ForwardDrop(VT): 1.33V
• PowerDissipation: 190W
• Trr: 1.3us
• Tq: 500us
• Configuration: Three PH
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: BLISTER

---

You can click for product datasheet.
