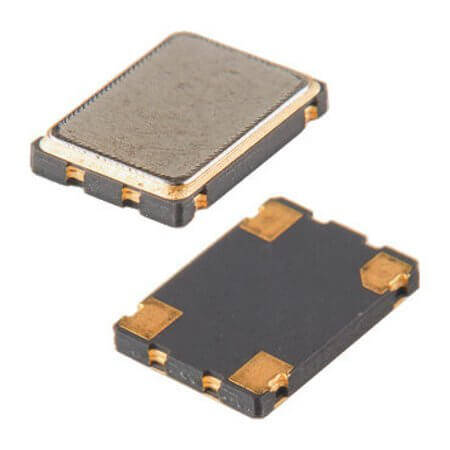

CO4905-14.7456-EXT-T-TR CRYSTAL OSCILLATOR 14.7456MHZ 50PPM EXT T&R SMD

CO4905-14.7456-EXT-T-TR CRYSTAL OSCILLATOR 14.7456MHZ 50PPM EXT T&R SMD Description

CO4905-14.7456-EXT-T-TR CRYSTAL OSCILLATOR 14.7456MHZ 50PPM EXT T&R SMD The product CO4905-14.7456-EXT-T-TR (CRYSTAL OSCILLATOR 14.7456MHZ 50PPM EXT T&R SMD) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by RALTRON, it offers a frequency stability of ±50PPM and operates at a supply voltage of 5V. The output type is TTL, making it versatile for various N/A applications. The compact design measures 7.00mm x 5.00mm x 1.80mm and performs reliably within a temperature range of -40°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

CO4905-14.7456-EXT-T-TR CRYSTAL OSCILLATOR 14.7456MHZ 50PPM EXT T&R SMD Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: CO4905
• Package/Case: 4-SMD
• Frequency: 14.7456MHz
• Capacitance: 50pF
• FrequencyTolerance:
• FrequencyStability: ±50PPM
• SupplyVoltage: 5V
• Output: TTL
• Applications:
• Length: 7.00mm
• Width: 5.00mm
• Height: 1.80mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
