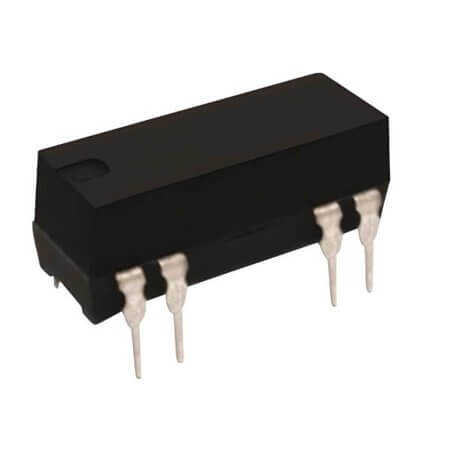

DIP05-1A72-12L REED RELAY 5V 0.5A PNC1

DIP05-1A72-12L REED RELAY 5V 0.5A PNC1 Description

DIP05-1A72-12L REED RELAY 5V 0.5A PNC1 DIP05-1A72-12L is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 200VAC/VDC and coil resistance of 500 Ohms. Features a coil power of 50mW and operates within a temperature range of -20°C~+70°C.Compact design with dimensions: length 19.30mm, width 6.50mm, and height 5.10mm.Manufactured by STANDEX and compliant with ROHS standards. Packaged as TUBE for convenience.

DIP05-1A72-12L REED RELAY 5V 0.5A PNC1 Technical Specifications

• Manufacturer: STANDEX
• RelayType: Relay Reed
• Series: DIP05
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 500mA
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 10mA
• ContactVoltage: 200VAC/VDC
• CoilResistance: 500 Ohms
• CoilPower: 50mW
• OperatingTemperature: -20°C~+70°C
• NumberofPins: 8 Pin
• Length: 19.30mm
• Width: 6.50mm
• Height: 5.10mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
