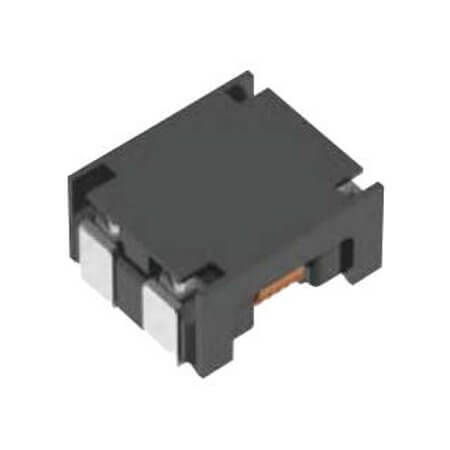

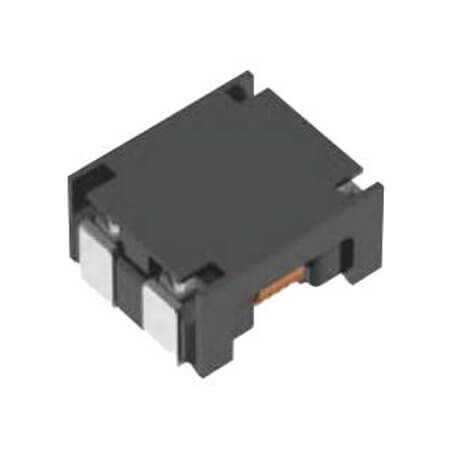

ACM70V-701-2PL-TL00 COMMON MODE CHOKES DUAL 700OHM 100MHZ 4A15MOHM SMD

ACM70V-701-2PL-TL00 COMMON MODE CHOKES DUAL 700OHM 100MHZ 4A15MOHM SMD Description

ACM70V-701-2PL-TL00 COMMON MODE CHOKES DUAL 700OHM 100MHZ 4A15MOHM SMD The product ACM70V-701-2PL-TL00 (COMMON MODE CHOKES DUAL 700OHM 100MHZ 4A15MOHM SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by TDK, it features an inductance of None and a DC resistance of 15m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 7.00mm x 6.00mm x 3.50mm and operates within a temperature range of -40°C ~ +125°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

ACM70V-701-2PL-TL00 COMMON MODE CHOKES DUAL 700OHM 100MHZ 4A15MOHM SMD Technical Specifications

• Manufacturer: TDK
• Series: ACM
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 700 Ohms
• Current: 4A
• Tolerance:
• DCResistance(DCR): 15m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 7.00mm
• Width: 6.00mm
• Height: 3.50mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
