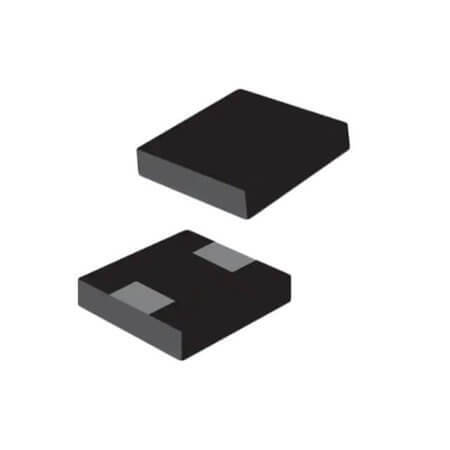

ECS-MPI4040R3-3R3-R INDUCTOR FIXED 3.3uH 4.45X4.06MM

ECS-MPI4040R3-3R3-R INDUCTOR FIXED 3.3uH 4.45X4.06MM Description

ECS-MPI4040R3-3R3-R INDUCTOR FIXED 3.3uH 4.45X4.06MM The ECS-MPI4040R3-3R3-R is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 3.3uH 4.45X4.06MM, this component ensures reliable and efficient power management. Manufactured by ECS, it features compact dimensions of 4.45mm x 4.06mm x 1.85mm, making it ideal for space-constrained designs. Its ability to operate within -55°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the ECS-MPI4040R3-3R3-R reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

ECS-MPI4040R3-3R3-R INDUCTOR FIXED 3.3uH 4.45X4.06MM Technical Specifications

• Manufacturer: ECS
• Series: ECS
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology:
• Shielding: Shielded
• Inductance: 3.3uH
• CurrentRating: 3A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 60m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 4.45mm
• Width: 4.06mm
• Height: 1.85mm
• OperationTemperature: -55°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
