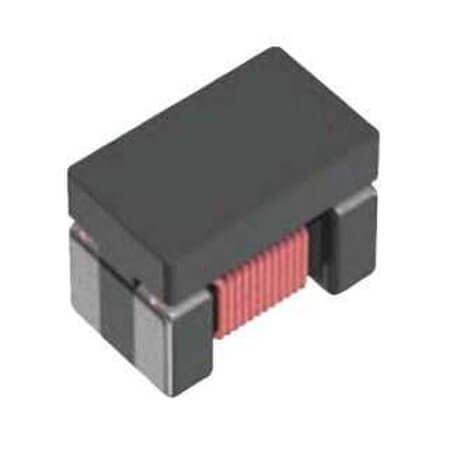

ACM2012-900-2P-T001 CHOKE COMMON MODE CMC 200nH 400MA 2LN 680 OHM SMD

ACM2012-900-2P-T001 CHOKE COMMON MODE CMC 200nH 400MA 2LN 680 OHM SMD Description

ACM2012-900-2P-T001 CHOKE COMMON MODE CMC 200nH 400MA 2LN 680 OHM SMD The product ACM2012-900-2P-T001 (CHOKE COMMON MODE CMC 200nH 400MA 2LN 680 OHM SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by TDK, it features an inductance of None and a DC resistance of 190m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 2.00mm x 1.20mm x 1.30mm and operates within a temperature range of -40°C ~ +105°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

ACM2012-900-2P-T001 CHOKE COMMON MODE CMC 200nH 400MA 2LN 680 OHM SMD Technical Specifications

• Manufacturer: TDK
• Series: ACM
• MountingType: SMT
• Package/Case: 0805 (2012 Metric)
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 90 Ohms
• Current: 400mA
• Tolerance:
• DCResistance(DCR): 190m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 2.00mm
• Width: 1.20mm
• Height: 1.30mm
• OperationTemperature: -40°C ~ +105°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
