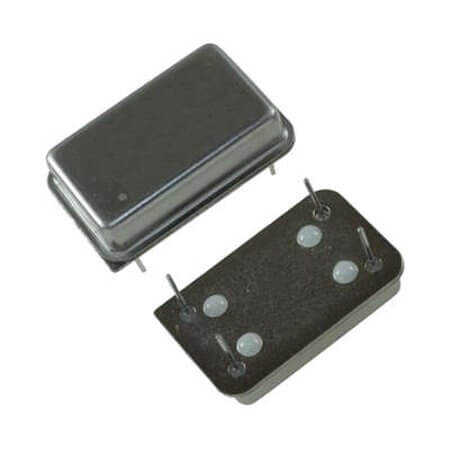

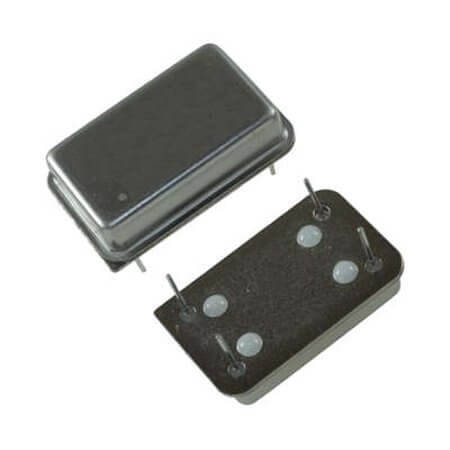

ECS-100AX-036 CRYSTAL OSCILLATOR 3.6864MHZ TTL PC PIN

ECS-100AX-036 CRYSTAL OSCILLATOR 3.6864MHZ TTL PC PIN Description

ECS-100AX-036 CRYSTAL OSCILLATOR 3.6864MHZ TTL PC PIN The product ECS-100AX-036 (CRYSTAL OSCILLATOR 3.6864MHZ TTL PC PIN) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by ECS, it offers a frequency stability of ±100PPM and operates at a supply voltage of 5V. The output type is TTL, making it versatile for various N/A applications. The compact design measures 20.86mm x 13.20mm x 5.08mm and performs reliably within a temperature range of 0°C~+70°C. Packaged in BULK format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

ECS-100AX-036 CRYSTAL OSCILLATOR 3.6864MHZ TTL PC PIN Technical Specifications

• Manufacturer: ECS
• MountingType: THT
• Series: 100AX
• Package/Case: DIP14
• Frequency: 3.6864MHz
• Capacitance:
• FrequencyTolerance:
• FrequencyStability: ±100PPM
• SupplyVoltage: 5V
• Output: TTL
• Applications:
• Length: 20.86mm
• Width: 13.20mm
• Height: 5.08mm
• OperatingTemperature: 0°C~+70°C
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
