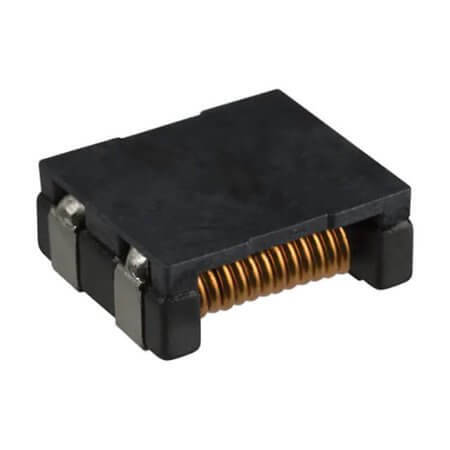

ACM1513-551-2PL-TLHF CHOKE COMMON MODE 550 OHM 10A 2LN SMD

ACM1513-551-2PL-TLHF CHOKE COMMON MODE 550 OHM 10A 2LN SMD Description

ACM1513-551-2PL-TLHF CHOKE COMMON MODE 550 OHM 10A 2LN SMD The product ACM1513-551-2PL-TLHF (CHOKE COMMON MODE 550 OHM 10A 2LN SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by TDK, it features an inductance of None and a DC resistance of 4m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 15.00mm x 13.00mm x 6.00mm and operates within a temperature range of -40°C ~ +85°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

ACM1513-551-2PL-TLHF CHOKE COMMON MODE 550 OHM 10A 2LN SMD Technical Specifications

• Manufacturer: TDK
• Series: ACM
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 550 Ohms
• Current: 10A
• Tolerance:
• DCResistance(DCR): 4m Ohms
• Applications: General Purpose
• Diameter:
• Length: 15.00mm
• Width: 13.00mm
• Height: 6.00mm
• OperationTemperature: -40°C ~ +85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
