B82722A2302N001 CHOKE COMMON MODE DOUBLE 1.2MH 3A HORIZONTAL

B82722A2302N001 CHOKE COMMON MODE DOUBLE 1.2MH 3A HORIZONTAL Description

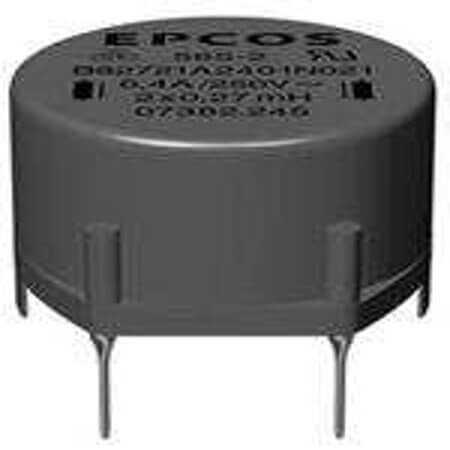

B82722A2302N001 CHOKE COMMON MODE DOUBLE 1.2MH 3A HORIZONTAL The product B82722A2302N001 (CHOKE COMMON MODE DOUBLE 1.2MH 3A HORIZONTAL) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by EPCOS (TDK), it features an inductance of 1.2mH and a DC resistance of 56m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 22.70mm x 22.30mm x 13.80mm and operates within a temperature range of N/A. Packaged in TRAY format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

B82722A2302N001 CHOKE COMMON MODE DOUBLE 1.2MH 3A HORIZONTAL Technical Specifications

• Manufacturer: EPCOS (TDK)
• Series: B82722
• MountingType: THT
• Package/Case: Non Standard
• Pitch: 12.50mm
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 1.2mH
• Impedance: None
• Current: 3A
• Tolerance: ±30%
• DCResistance(DCR): 56m Ohms
• Applications: General Purpose
• Diameter:
• Length: 22.70mm
• Width: 22.30mm
• Height: 13.80mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
