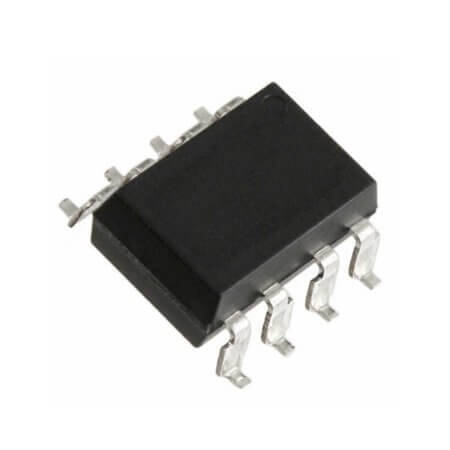

6N137SM-ONS OPTOCOUPLER LOGIC-OUT DC-IN 1-CH PDIP8 SMD BLACK

6N137SM-ONS OPTOCOUPLER LOGIC-OUT DC-IN 1-CH PDIP8 SMD BLACK Description

6N137SM-ONS OPTOCOUPLER LOGIC-OUT DC-IN 1-CH PDIP8 SMD BLACK The product 6N137SM-ONS (OPTOCOUPLER LOGIC-OUT DC-IN 1-CH PDIP8 SMD BLACK) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 75ns, 75ns, an input type of DC, and an output type of Open Collector. The optocoupler supports an output current of 50mA and an isolation voltage of 5000Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.45V, a supply voltage range of 4.5V to 5.5V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

6N137SM-ONS OPTOCOUPLER LOGIC-OUT DC-IN 1-CH PDIP8 SMD BLACK Technical Specifications

• Manufacturer: ONS
• Features: Microprocessor Compatible Schmitt Trigger Optically Coupled Isolator
• MountingType: SMT
• Package/Case: SMD8
• NumberofChannel: 2
• PropagationDelayTime(Low/High): 75ns, 75ns
• InputType: DC
• OutputType: Open Collector
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• InputForwardVoltage: 1.45V
• SupplyVoltage: 4.5V to 5.5V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
