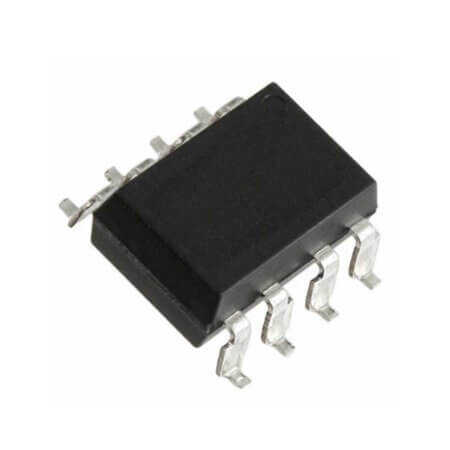

ICPL2601SMT&R OPTO COUPLER HIGH SPEED

ICPL2601SMT&R OPTO COUPLER HIGH SPEED Description

ICPL2601SMT&R OPTO COUPLER HIGH SPEED The product ICPL2601SMT&R (OPTO COUPLER HIGH SPEED) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 75ns, 75ns, an input type of DC, and an output type of Open Collector, Schottky Clamped. The optocoupler supports an output current of 25mA and an isolation voltage of 2500Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.55V, a supply voltage range of 7V, and an operating temperature range of 0°C~+70°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TAPE&REEL packaging, making it a reliable choice for modern electronic systems.

ICPL2601SMT&R OPTO COUPLER HIGH SPEED Technical Specifications

• Manufacturer: ISOCOM
• Features: Optoisolator 2.5KV Open Collector 8SMD
• MountingType: SMT
• Package/Case: SMD8
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 75ns, 75ns
• InputType: DC
• OutputType: Open Collector, Schottky Clamped
• OutputCurrent: 25mA
• IsolationVoltage: 2500Vrms
• InputForwardVoltage: 1.55V
• SupplyVoltage: 7V
• OperatingTemperature: 0°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
