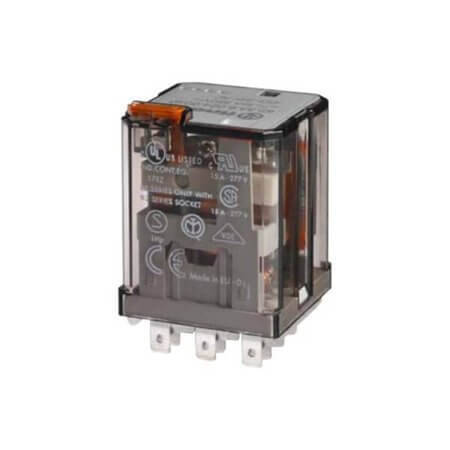

62.32.8.230.0040 RELAY GEN PURPOSE DPDT 16A 230V FINDER

62.32.8.230.0040 RELAY GEN PURPOSE DPDT 16A 230V FINDER Description

62.32.8.230.0040 RELAY GEN PURPOSE DPDT 16A 230V FINDER 62.32.8.230.0040 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 7.25K Ohms. Features a coil power of nan and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 38.20mm, width 35.80mm, and height 49.10mm.Manufactured by FINDER and compliant with ROHS standards. Packaged as BULK for convenience.

62.32.8.230.0040 RELAY GEN PURPOSE DPDT 16A 230V FINDER Technical Specifications

• Manufacturer: FINDER
• RelayType: Relay Power
• Series: 62.32
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max): 30A
• CoilVoltage: 230VAC
• CoilCurrent: 10.50mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 7.25K Ohms
• CoilPower:
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 38.20mm
• Width: 35.80mm
• Height: 49.10mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
