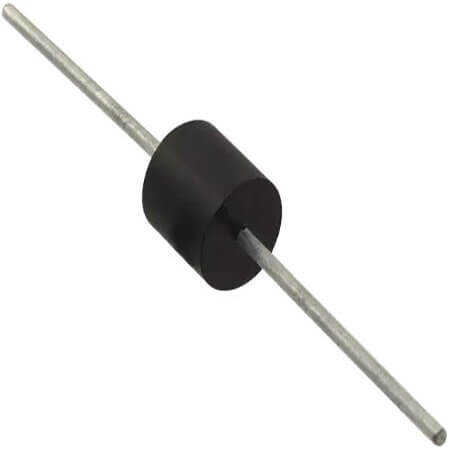

5KP30A-TP DIODE TVS 5000W 30V 48.4V R-6

5KP30A-TP DIODE TVS 5000W 30V 48.4V R-6 Description

The 5KP30A-TP DIODE TVS 5000W 30V 48.4V R-6 The 5KP30A-TP by M.C.C. is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 5uA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 103A and a power peak pulse of 5kW, this diode is ideal for nan applications. Operating efficiently within a temperature range of -55°C~+150°C, the 5KP30A-TP is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

5KP30A-TP DIODE TVS 5000W 30V 48.4V R-6 Technical Specifications

• Manufacturer: M.C.C.
• TVS  DiodeType: Standard
• DiodeConfiguration: Single
• MountingType: THT
• Package  /Case: R6
• Direction: Uni-Direction
• Voltage  -  Reverse  Standoff(Typ): 30V
• ReverseCurrent: 5uA
• Peak  Pulse  Current  (Max)(Ippm): 103A
• Power  (PeakPulse): 5kW
• Applications:
• OperatingTemperature: -55°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL
