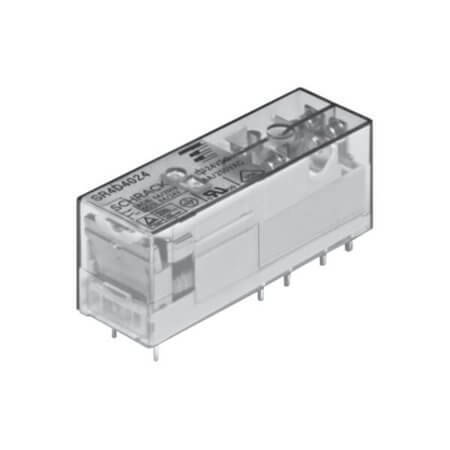

4-1415053-1 RELAY POWER 8A 24VDC PCB TYPE 10PIN SR4M4024

4-1415053-1 RELAY POWER 8A 24VDC PCB TYPE 10PIN SR4M4024 Description

4-1415053-1 RELAY POWER 8A 24VDC PCB TYPE 10PIN SR4M4024 4-1415053-1 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 720 Ohms. Features a coil power of 800mW and operates within a temperature range of -25°C~+70°C.Compact design with dimensions: length 40.00mm, width 13.00mm, and height 16.50mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

4-1415053-1 RELAY POWER 8A 24VDC PCB TYPE 10PIN SR4M4024 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Forcibly Guided
• Series: SR4
• MountingType: THT
• ContactForm: 4PST-NO/NC (3 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 400VAC - Max
• CoilResistance: 720 Ohms
• CoilPower: 800mW
• OperatingTemperature: -25°C~+70°C
• NumberofPins: 10 Pin
• Length: 40.00mm
• Width: 13.00mm
• Height: 16.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
