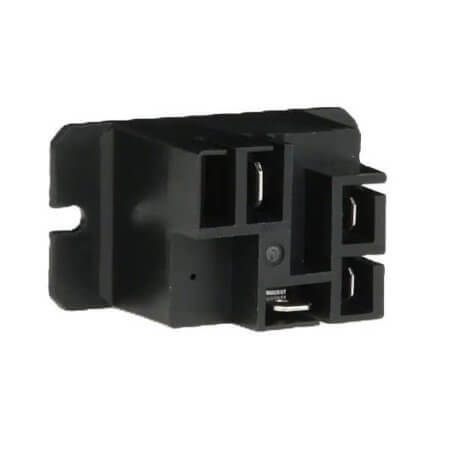

T9AP1D52-24 RELAY POWER 30A 24VDC SPST-NO CHASSIS MOUNT

T9AP1D52-24 RELAY POWER 30A 24VDC SPST-NO CHASSIS MOUNT Description

T9AP1D52-24 RELAY POWER 30A 24VDC SPST-NO CHASSIS MOUNT T9AP1D52-24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC - Max and coil resistance of 576 Ohms. Features a coil power of 1W and operates within a temperature range of -55°C~+85°C.Compact design with dimensions: length 50.29mm, width 27.43mm, and height 27.94mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

T9AP1D52-24 RELAY POWER 30A 24VDC SPST-NO CHASSIS MOUNT Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: T9A
• MountingType: Chassis Mount
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 41.70mA
• ContactVoltage: 277VAC - Max
• CoilResistance: 576 Ohms
• CoilPower: 1W
• OperatingTemperature: -55°C~+85°C
• NumberofPins:
• Length: 50.29mm
• Width: 27.43mm
• Height: 27.94mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
