1812L075/33DR THERMISTOR PTC RESETTABLE FUSE 1812 750mA 33V SMT

1812L075/33DR THERMISTOR PTC RESETTABLE FUSE 1812 750mA 33V SMT Description

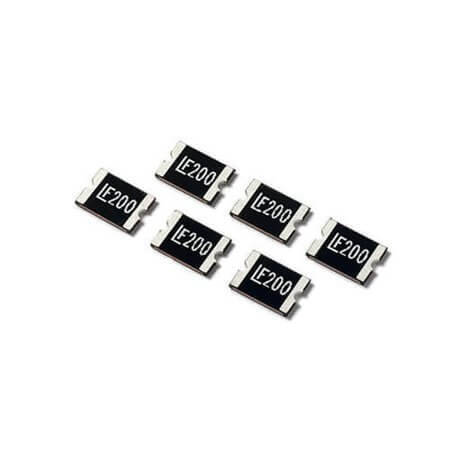

1812L075/33DR THERMISTOR PTC RESETTABLE FUSE 1812 750mA 33V SMT The 1812L075/33DR, manufactured by LITTELFUSE, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1812 750ma 33v smt. It offers reliable overcurrent protection with a maximum voltage rating of 33V. The fuse features a trip time of 200ms, ensuring fast response to overcurrent events. Its compact dimensions of 4.50mm x 3.20mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the 1812L075/33DR is an excellent choice for professionals seeking reliable PTC fuse solutions.

1812L075/33DR THERMISTOR PTC RESETTABLE FUSE 1812 750mA 33V SMT Technical Specifications

• Manufacturer: LITTELFUSE
• MountingType: SMT
• Package/Case: 1812 (4532 Metric)
• Pitch:
• Resistance(Min): 110m Ohms
• Resistance(Max): 400m Ohms
• Current-Hold: 750mA
• Current-Trip: 1.5A
• Current(Max): 20A
• Voltage(Max): 33V
• Time-Trip: 200ms
• Applications:
• Diameter:
• Length: 4.50mm
• Width: 3.20mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
