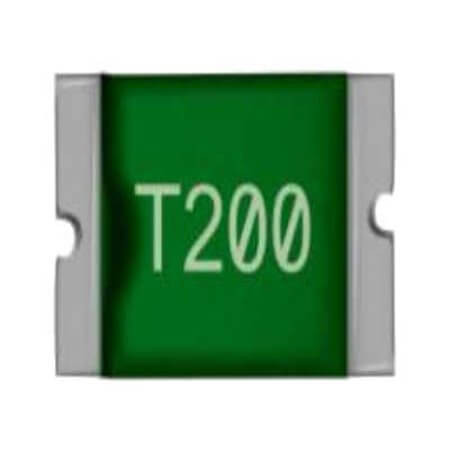

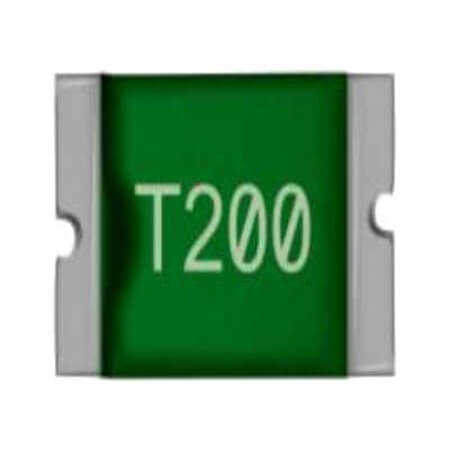

KMC5S075RY24 THERMISTOR PTC RESETTABLE FUSE 1812 750mA 24V

KMC5S075RY24 THERMISTOR PTC RESETTABLE FUSE 1812 750mA 24V Description

KMC5S075RY24 THERMISTOR PTC RESETTABLE FUSE 1812 750mA 24V The KMC5S075RY24, manufactured by THINKING, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1812 750ma 24v. It offers reliable overcurrent protection with a maximum voltage rating of 24V. The fuse features a trip time of 200ms, ensuring fast response to overcurrent events. Its compact dimensions of 4.50mm x 3.20mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the KMC5S075RY24 is an excellent choice for professionals seeking reliable PTC fuse solutions.

KMC5S075RY24 THERMISTOR PTC RESETTABLE FUSE 1812 750mA 24V Technical Specifications

• Manufacturer: THINKING
• MountingType: SMT
• Package/Case: 1812 (4532 Metric)
• Pitch:
• Resistance(Min): 110m Ohms
• Resistance(Max): 400m Ohms
• Current-Hold: 750mA
• Current-Trip: 1.5A
• Current(Max): 100A
• Voltage(Max): 24V
• Time-Trip: 200ms
• Applications:
• Diameter:
• Length: 4.50mm
• Width: 3.20mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
