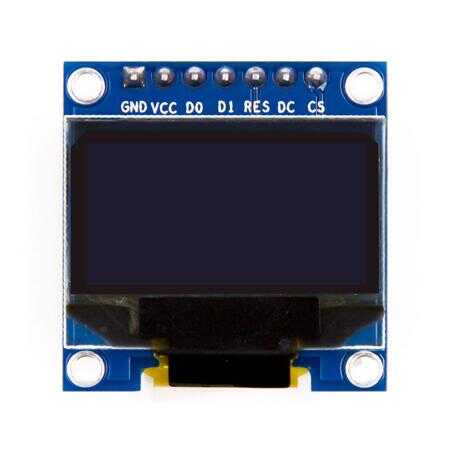

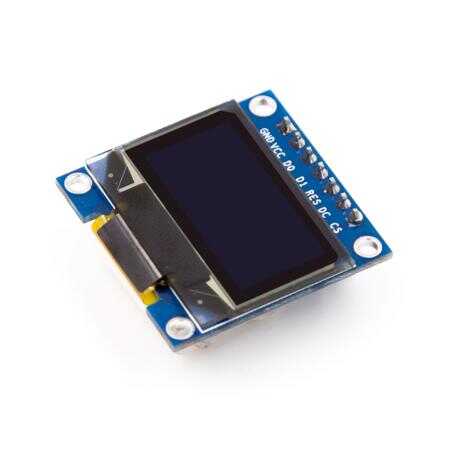

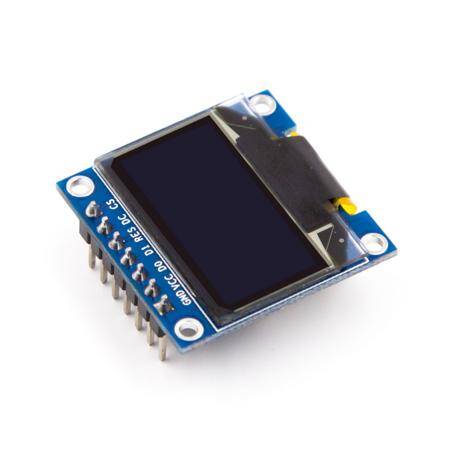

0.96" Inch SPI OLED LCD Module + CSpin 7 Pin (With GND VCC) White SSD1306 Chip

0.96 Inch SPI OLED LCD Module Description

The 0.96 Inch SPI OLED LCD Module with CSpin is a compact and high-resolution display designed for small-scale projects. Featuring a crisp white monochrome OLED screen and the SSD1306 driver chip, it offers clear visuals and reliable performance. The 7-pin SPI interface (GND, VCC, CLK, DIN, CS, DC, CSpin) enables fast communication and enhanced control, making it suitable for IoT, wearable, and embedded systems.

0.96 Inch SPI OLED LCD Module Features

• High Contrast Display: White monochrome OLED with 128x64 resolution for excellent visibility.
• 7-Pin SPI Interface: Includes CSpin for additional control and faster data communication.
• Energy Efficient: Optimized for low power consumption, ideal for battery-powered devices.
• Compact Design: Lightweight and small, perfect for portable or space-limited applications.
• SSD1306 Driver Chip: Provides compatibility with a wide range of platforms and libraries.

0.96 Inch SPI OLED LCD Module Specifications

• Display Size: 0.96 inches
• Resolution: 128x64 pixels
• Display Type: White monochrome OLED
• Chipset: SSD1306
• Interface: SPI (GND, VCC, CLK, DIN, CS, DC, CSpin)
• Operating Voltage: 3.3V - 5V
• Operating Temperature: -30°C to +70°C
• Dimensions: Compact and lightweight

0.96 Inch SPI OLED LCD Module Applications

• IoT Devices: Displays data and system status for smart devices and systems.
• Wearable Electronics: Perfect for fitness trackers and smartwatches.
• Prototyping: Ideal for adding graphical displays to DIY and experimental projects.
• Embedded Systems: Enhances microcontroller designs with graphical output capabilities.
• Educational Use: Suitable for learning and experimenting with SPI and OLED technologies.
