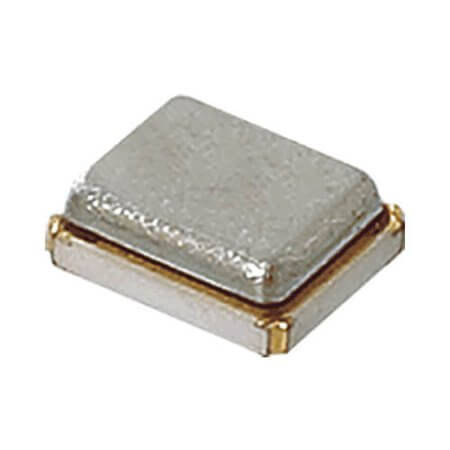

XRCGB24M000F2A01R0 CRYSTAL 24MHz 8pF ±20PPM SMT

XRCGB24M000F2A01R0 CRYSTAL 24MHz 8pF ±20PPM SMT Description

XRCGB24M000F2A01R0 CRYSTAL 24MHz 8pF ±20PPM SMT XRCGB24M000F2A01R0 is a high-performance crystal component that operates at a frequency of 24MHz with a frequency stability of ±35PPM.Features equivalent series resistance (ESR) of 120 Ohms. Compact dimensions: length 2.00mm, width 1.60mm, and height 0.65mm. Supports a temperature range of -40°C~+125°C for reliable performance. Manufactured by MURATA with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

XRCGB24M000F2A01R0 CRYSTAL 24MHz 8pF ±20PPM SMT Technical Specifications

• Manufacturer: MURATA
• MountingType: SMT
• Series: XRCGB
• Package/Case: 4-SMD
• Frequency: 24MHz
• Capacitance: 8pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±35PPM
• EquivalentSeriesResistance(ESR): 120 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 2.00mm
• Width: 1.60mm
• Height: 0.65mm
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
