XPL2010-222MLC INDUCTOR FIXED 2.2UH 1.3A 173MOHMS AEC-Q200 20%

XPL2010-222MLC INDUCTOR FIXED 2.2UH 1.3A 173MOHMS AEC-Q200 20% Description

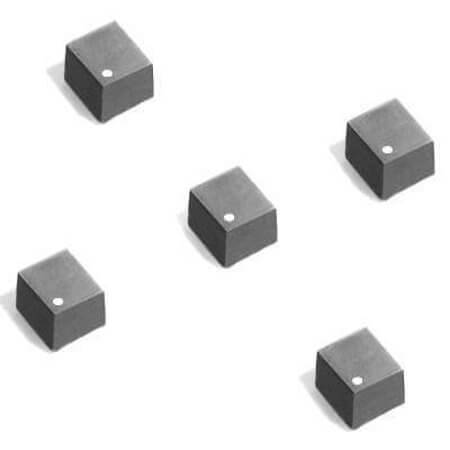

XPL2010-222MLC INDUCTOR FIXED 2.2UH 1.3A 173MOHMS AEC-Q200 20% The XPL2010-222MLC is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 2.2UH 1.3A 173MOHMS AEC-Q200 20%, this component ensures reliable and efficient power management. Manufactured by COILCRAFT, it features compact dimensions of 1.90mm x 2.00mm x 1.00mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the XPL2010-222MLC reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

XPL2010-222MLC INDUCTOR FIXED 2.2UH 1.3A 173MOHMS AEC-Q200 20% Technical Specifications

• Manufacturer: COILCRAFT
• Series: XPL
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Power
• Shielding: Shielded
• Inductance: 2.2uH
• CurrentRating: 960mA
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 156m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 1.90mm
• Width: 2.00mm
• Height: 1.00mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
