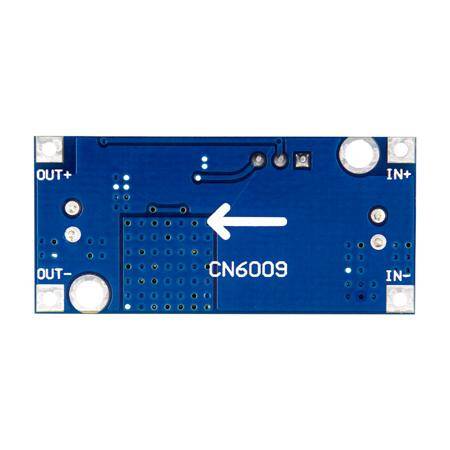

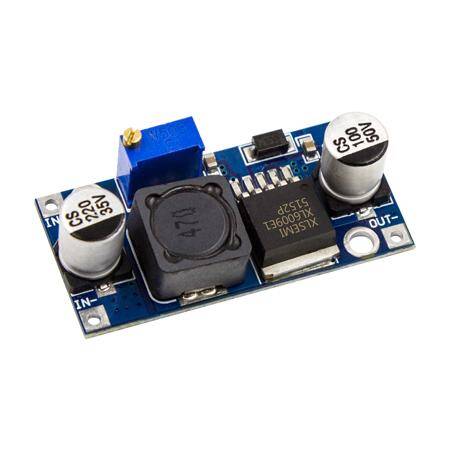

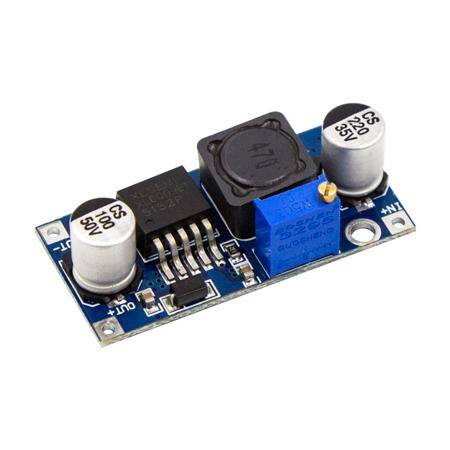

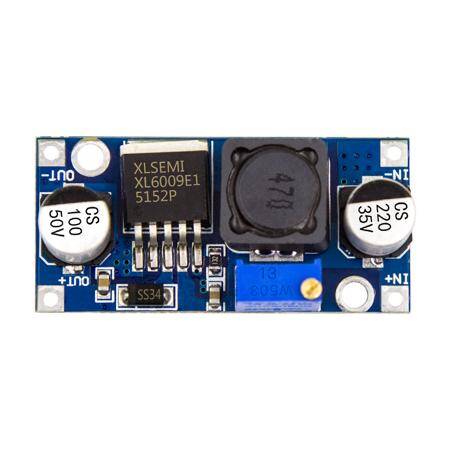

XL6009 DC-DC Booster Step-Up Module China Chip

XL6009 DC-DC Booster Step-Up Module Description

The XL6009 DC-DC Booster Step-Up Module is a high-performance voltage converter module designed to step up lower input voltages to higher output voltages efficiently. Built with a reliable China Chip, it offers excellent stability, high efficiency, and wide voltage adjustment capability. This module is ideal for powering devices requiring higher voltage than the available input source in IoT systems, robotics, and embedded applications.

XL6009 DC-DC Booster Step-Up Module Features

• High Efficiency: Conversion efficiency up to 92% for reduced power loss.
• Wide Voltage Range: Input voltage range of 3.8V to 32V and output voltage range of 5V to 35V.
• Adjustable Output Voltage: Easily set the desired output voltage using a potentiometer.
• China Chip: Provides reliable and cost-effective performance.
• Compact Design: Lightweight and easy to integrate into tight spaces.
• Overheat Protection: Includes thermal shutdown to prevent damage under high loads.

XL6009 DC-DC Booster Step-Up Module Specifications

• Chip: XL6009
• Input Voltage: 3.8V - 32V
• Output Voltage: 5V - 35V (adjustable)
• Output Current: Maximum 4A (recommended < 3A for stable operation)
• Efficiency: Up to 92% (depending on input/output voltage and load)
• Switching Frequency: 400kHz
• Operating Temperature: -40°C to +85°C
• Dimensions: Compact and lightweight

XL6009 DC-DC Booster Step-Up Module Applications

• IoT Devices: Powers sensors and modules requiring higher voltage than available sources.
• Battery-Powered Projects: Boosts voltage for devices running on lower-voltage batteries.
• Robotics: Provides stable power for motors and controllers in robotic systems.
• DIY Electronics: Ideal for hobbyists building adjustable power supply systems.
• Embedded Systems: Powers embedded devices in industrial and educational projects.
