WPT-0303M20 CONNECTOR MICRO JACK 3PIN MALE MIN. OD5.5MM TSHAPE

WPT-0303M20 CONNECTOR MICRO JACK 3PIN MALE MIN. OD5.5MM TSHAPE Description

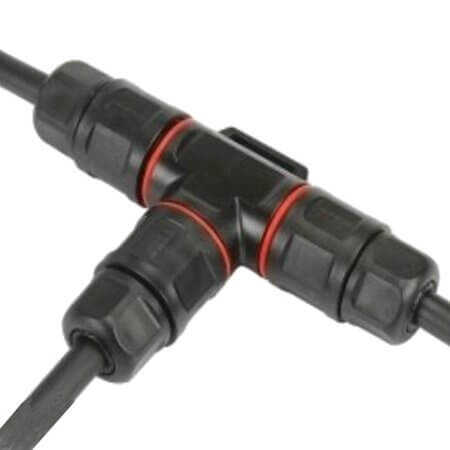

WPT-0303M20 CONNECTOR MICRO JACK 3PIN MALE MIN. OD5.5MM TSHAPE WPT-0303M20 is a premium microphone jack that designed for robust audio connections with Free mounting. Offers ingress protection rated at IP68 for durability in various environments. Handles up to 16.00A current, making it suitable for demanding applications. Made of Silicone with a housing color of Black for a sleek finish. Manufactured by TTAF and compliant with ROHS standards. Available in BULK packaging for ease of use.

WPT-0303M20 CONNECTOR MICRO JACK 3PIN MALE MIN. OD5.5MM TSHAPE Technical Specifications

• Manufacturer: TTAF
• Series: WPT
• NumberofPins: 3 Pins
• ConnectorType: T Type
• Termination: Crimp
• MountingType: Free
• IngressProtection: IP68
• ShellSize: 8.5-5.5
• CurrentRatingMax: 16.00A
• ShellMaterial: Silicone
• ContactFinish: Nickel Plated Brass
• ContactFinishMating:
• ColorofHousing: Black
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
