WL03JTR22-G INDUCTOR FIXED 0603 220nH %5 1.600 DCR 250MA IDC

WL03JTR22-G INDUCTOR FIXED 0603 220nH %5 1.600 DCR 250MA IDC Description

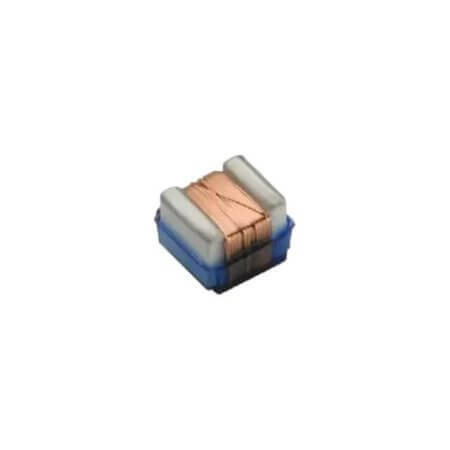

WL03JTR22-G INDUCTOR FIXED 0603 220nH %5 1.600 DCR 250MA IDC The WL03JTR22-G is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 0603 220nH %5 1.600 DCR 250MA IDC, this component ensures reliable and efficient power management. Manufactured by VIKING, it features compact dimensions of 1.60mm x 0.80mm x 0.80mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the WL03JTR22-G reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

WL03JTR22-G INDUCTOR FIXED 0603 220nH %5 1.600 DCR 250MA IDC Technical Specifications

• Manufacturer: VIKING
• Series: WL
• MountingType: SMT
• Package/Case: 0603 (1608 Metric)
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• Inductance: 220nH
• CurrentRating: 250mA
• Current-Saturation(Isat):
• Tolerance: ±5%
• DCResistance(DCR): 1.6 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 1.60mm
• Width: 0.80mm
• Height: 0.80mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
