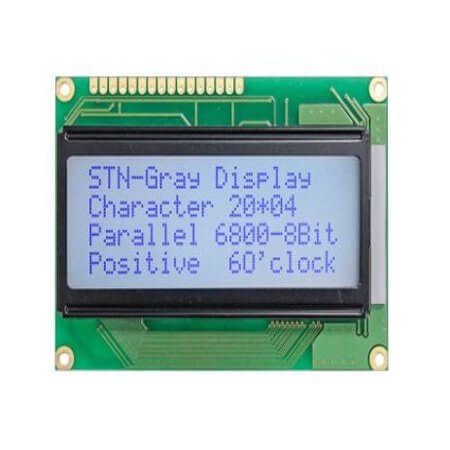

WH2004G-TGH-JW# LCD CHARACTER 20X4 STN POSITIVE GREY 5V

WH2004G-TGH-JW# LCD CHARACTER 20X4 STN POSITIVE GREY 5V Description

WH2004G-TGH-JW# LCD CHARACTER 20X4 STN POSITIVE GREY 5V The product WH2004G-TGH-JW# (LCD CHARACTER 20X4 STN POSITIVE GREY 5V) is a versatile character LCD module designed for a variety of display applications. Manufactured by WINSTAR, it supports a 6800 interface and offers a typical supply voltage of N/A. Featuring a N/A polarizer and a character font of English, Japanese, European, it provides excellent readability. The module has an outline size of 87.00mm x 58.00mm x 13.60mm and operates within a temperature range of -20°C~+70°C. Compliant with RoHS standards and packaged in BOX format, this LCD is a reliable solution for modern electronic systems.

WH2004G-TGH-JW# LCD CHARACTER 20X4 STN POSITIVE GREY 5V Technical Specifications

• Manufacturer: WINSTAR
• DisplayFormat: 20x4
• CharacterSize: 2.95x4.75mm
• ViewArea: 74.40x24.80mm
• BacklightType: LED, White
• LCDMode: STN Positive Grey
• Polarizer/ViewDirection: Transflective W.T 6:00
• TypicalSupplyVoltage: 5V
• Interface/Controller: 6800
• CharacterFont: English, Japanese, European
• OutlineLength: 87.00mm
• OutlineWidth: 58.00mm
• OutlineHeight: 13.60mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
